Product Details

✔ Anti-slip Handle: The diamond-shaped handle surface can effectively enhance friction, thus making the grip more comfortable and stable.

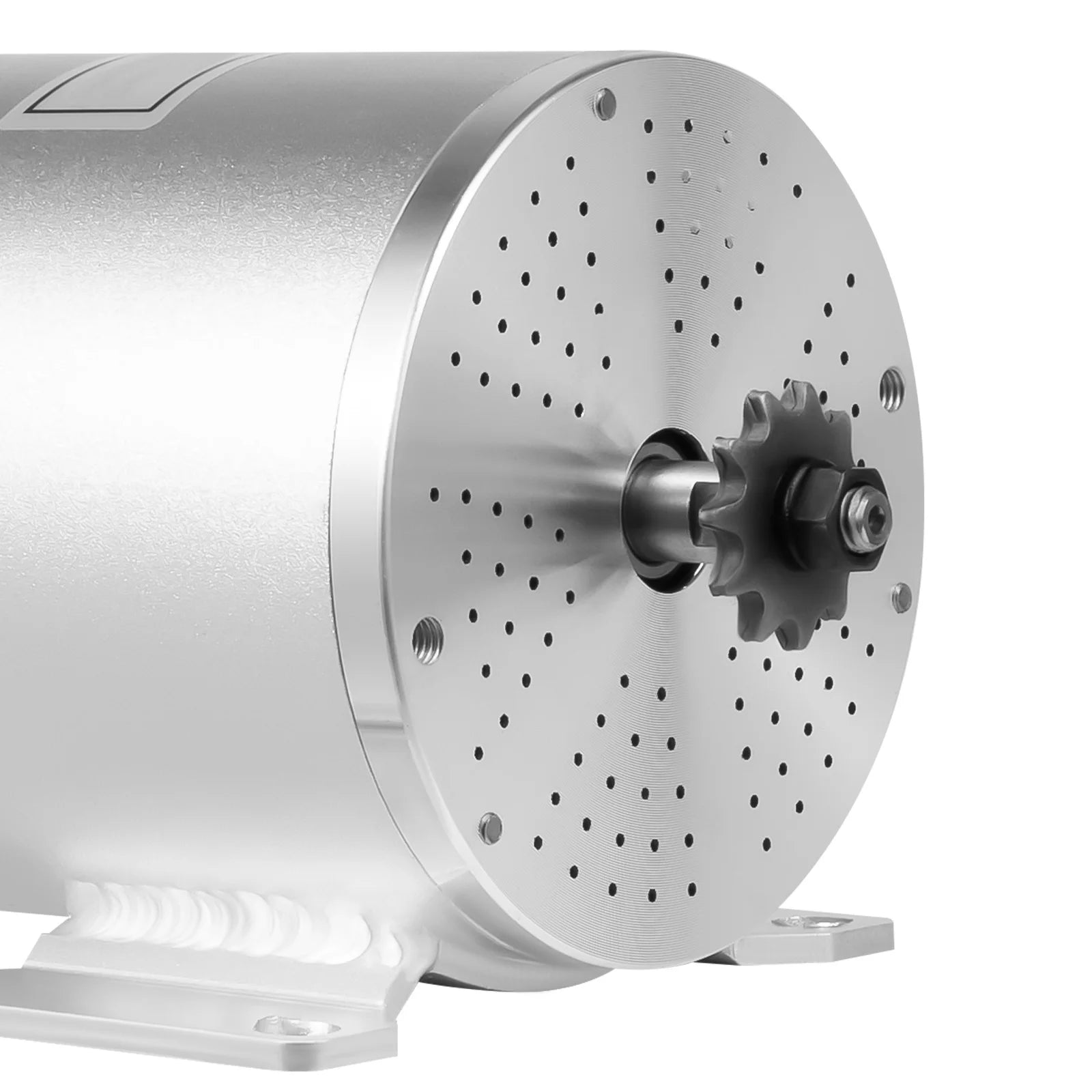

✔ Feet: The feet on the bottom of the motor can effectively improve the stability of the motor, thus ensuring a more stable and efficient operation of the product.
✔ Application: This product is suitable for electric motorcycles, beach bikes, go-karts, modified bicycles, mechanical equipment, etc.
Product Specification
Color: Silver, Black
Model: BM1109
Material: Aluminum, Pure Copper
Assembly Required: Yes
Brushless Motor Voltage: 48-72V
Load Weight: Approx. 100-200kg/220.46-440.92lbs
No-load Current: ≤8.8A
Rated Current: ≤43A
No-load Speed: 6000rpm
Rated Speed: 4900rpm
Rated Torque: 5.4 N.m
Motor Efficiency：≥80％
Controller Voltage: 48-72V
Power: 3KW
Protection grade: IP33
Insulation grade: E
Gross Weight: 6.9kg/ 15.21 lbs
Net Weight: 6.2kg/ 13.67 lbs
Leg Spacing: 11.7cm/4.61in
Leg Height: 5mm/0.2in
Interface Length: 29mm/1.14in
Motor Size(φxL): 10.7x13.4cm/4.21x5.28in
Package Size: 34x23.5x17.5 cm/13.39x9.25x6.89 in

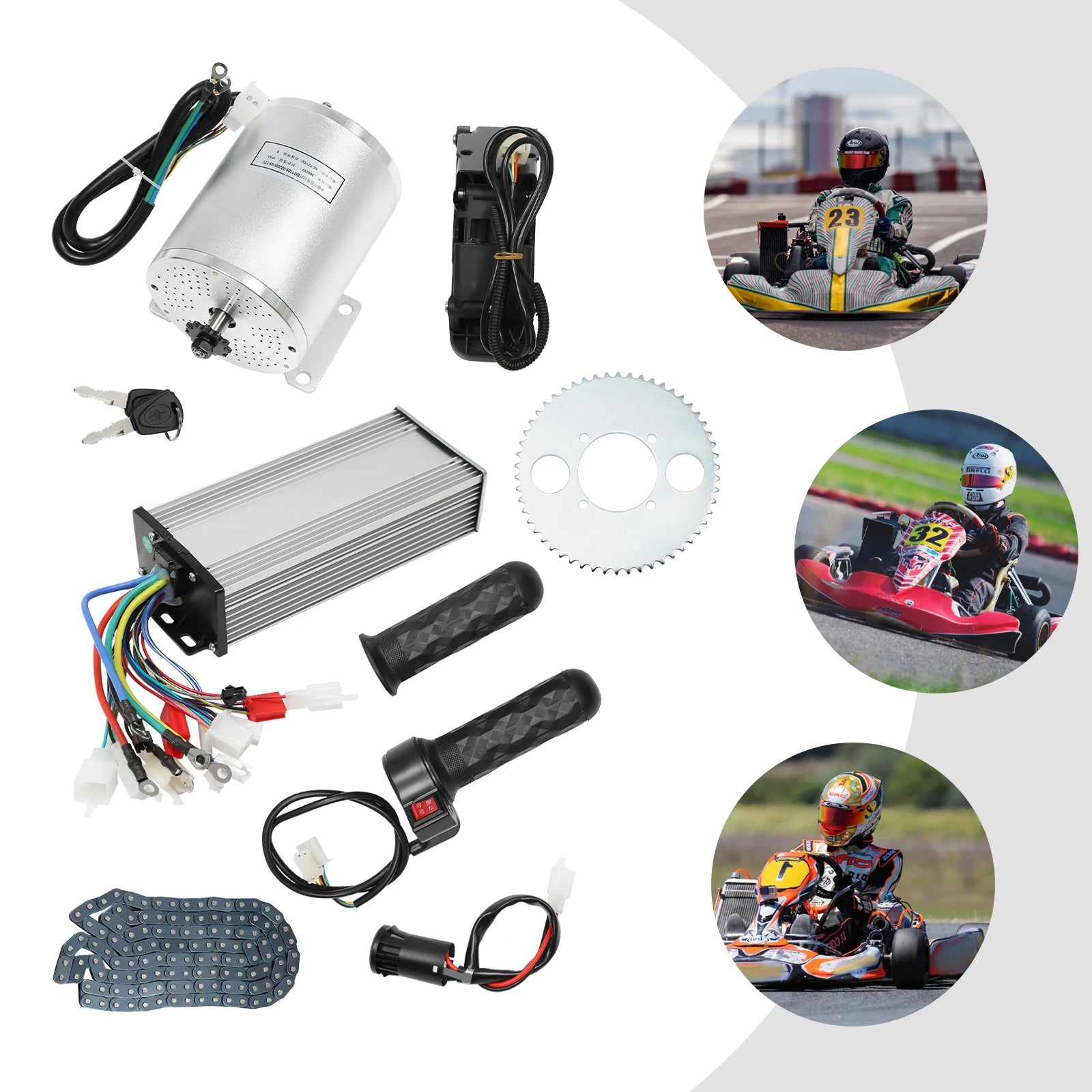

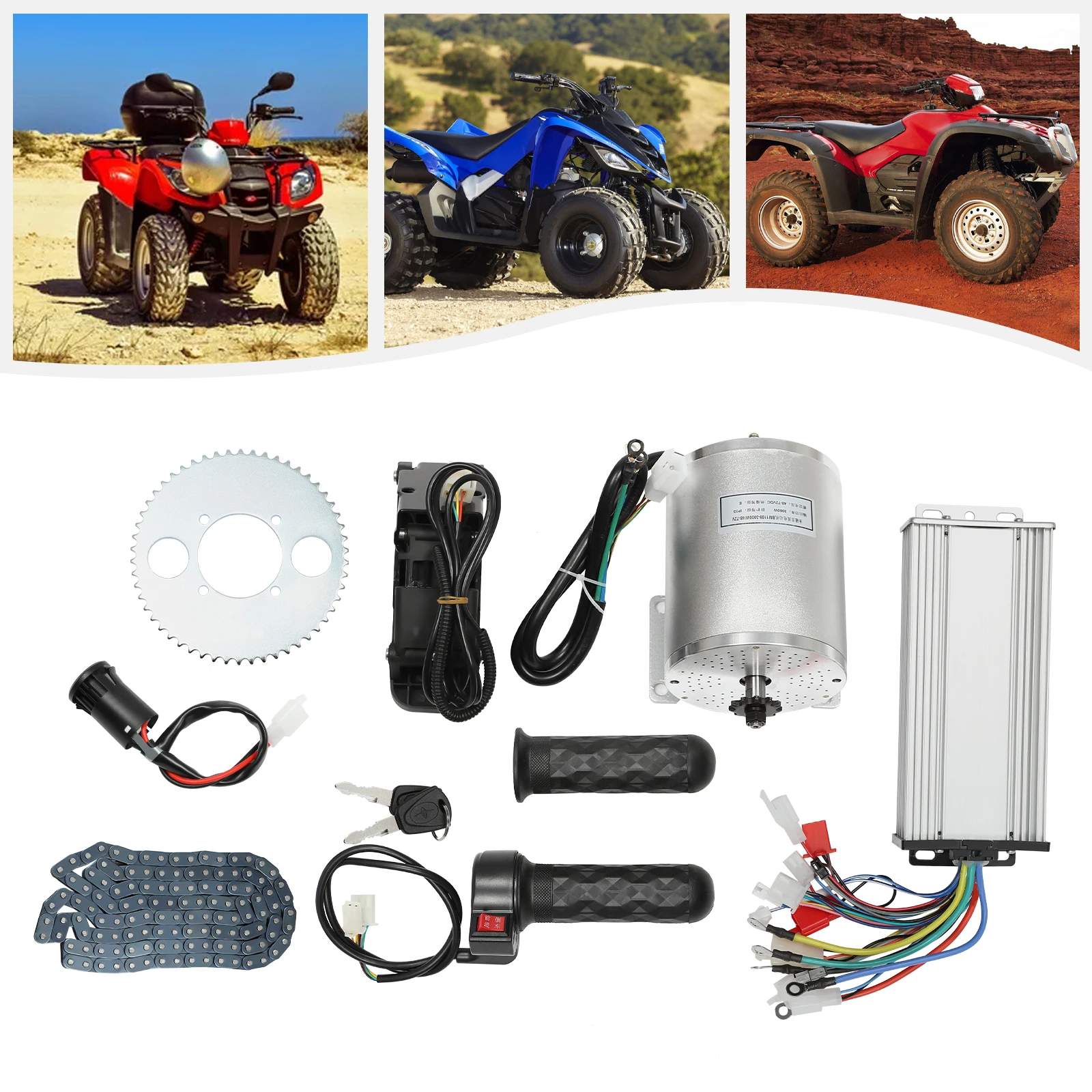

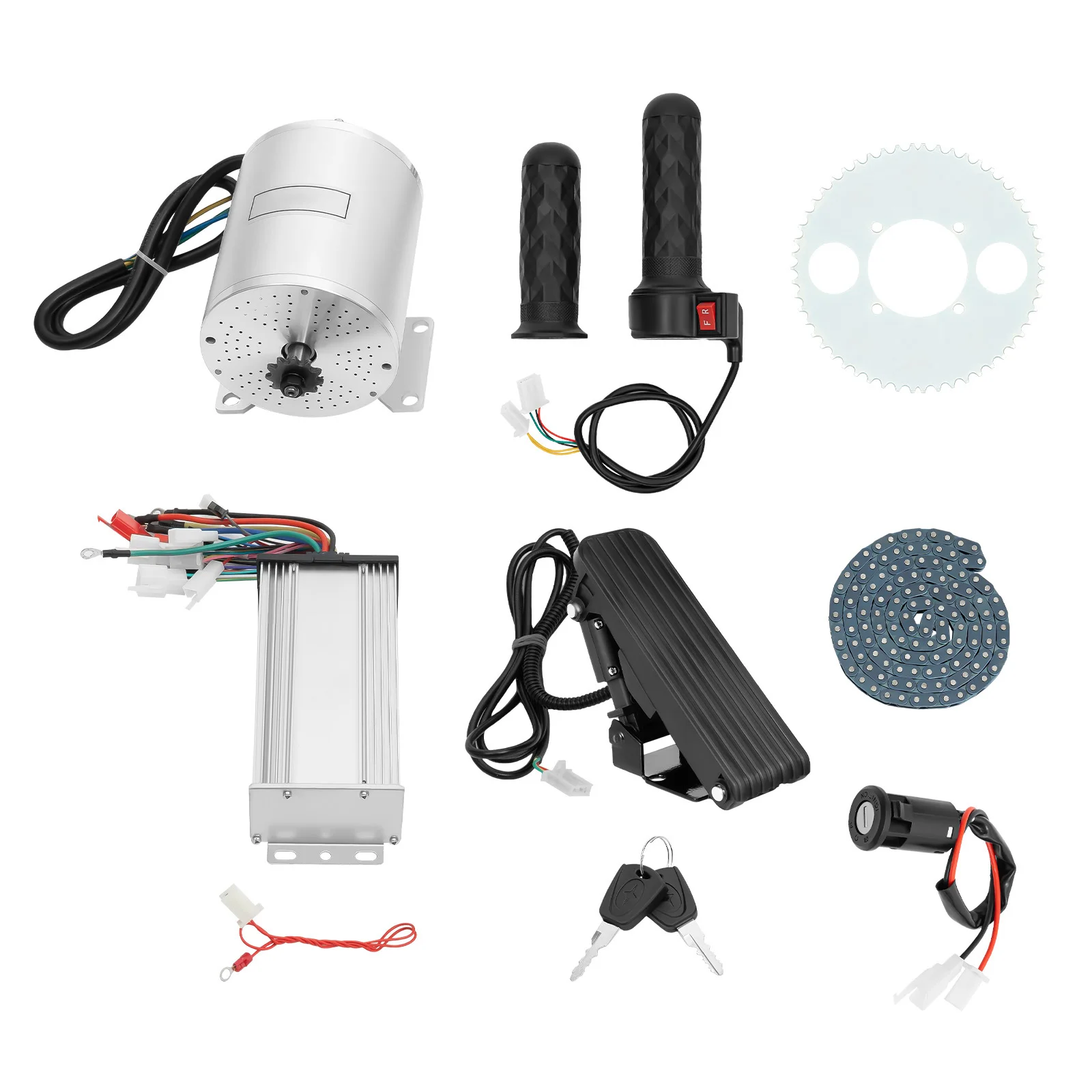

Package Included
1 x Motor

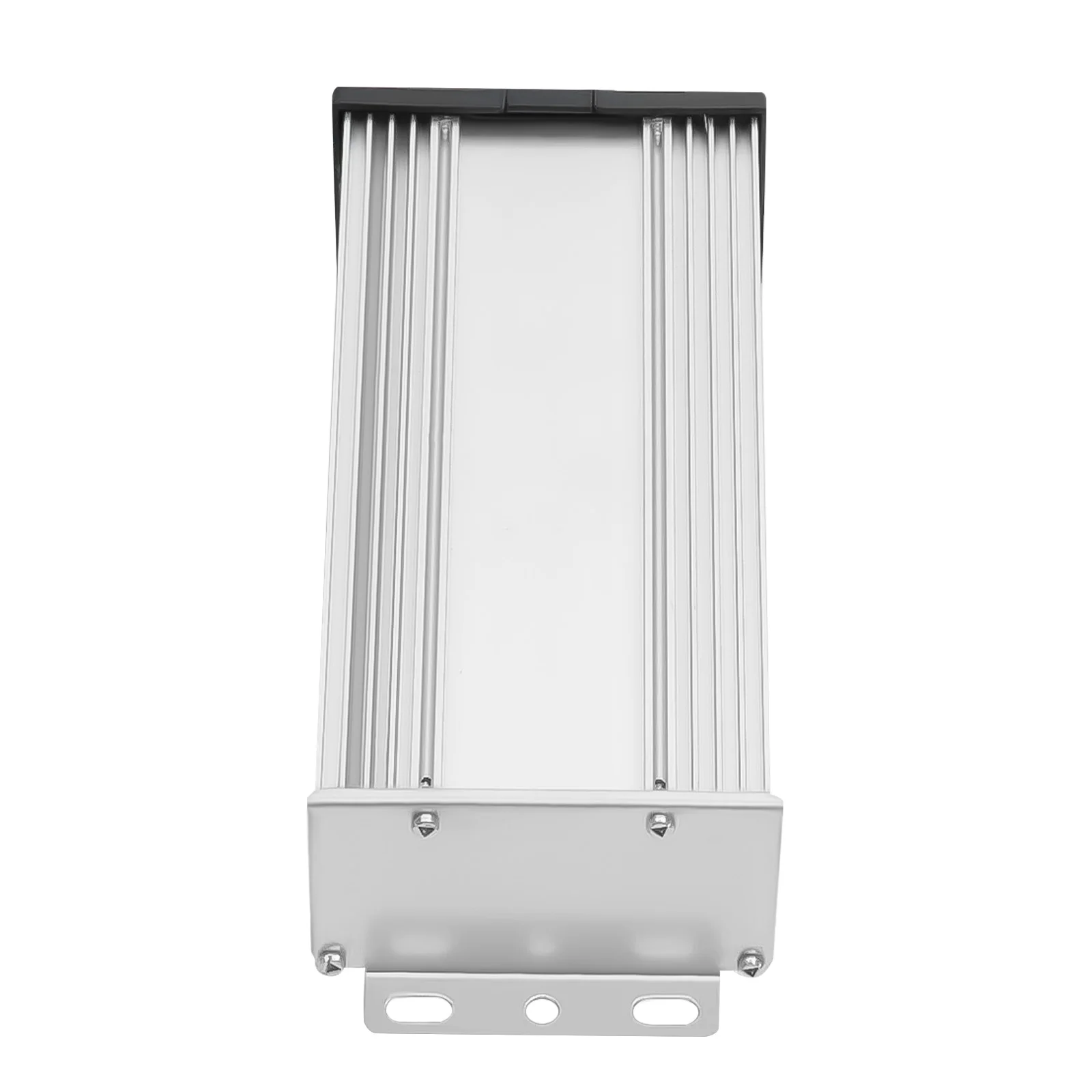

1 x Controller
1 x Foot Pedal Throttle

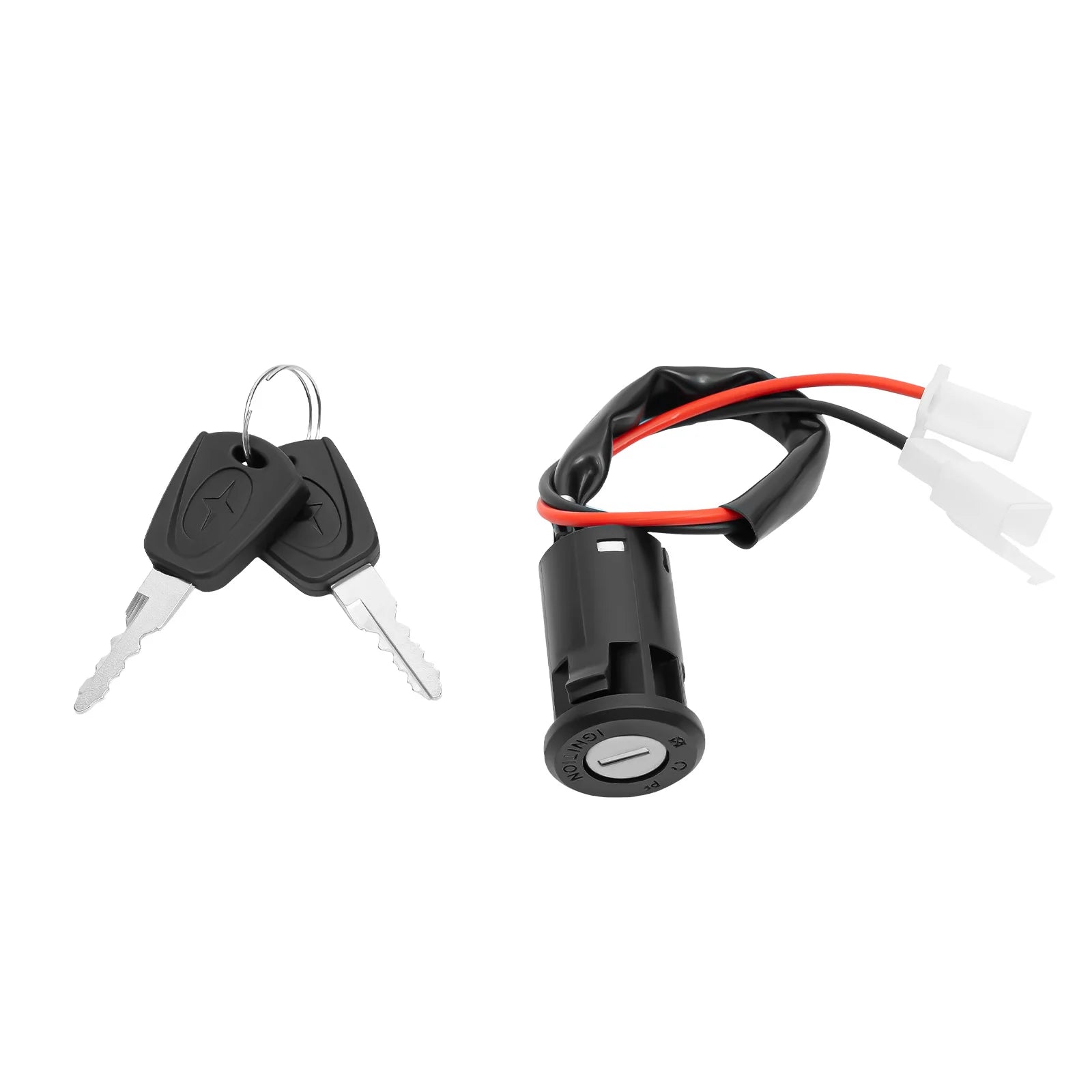

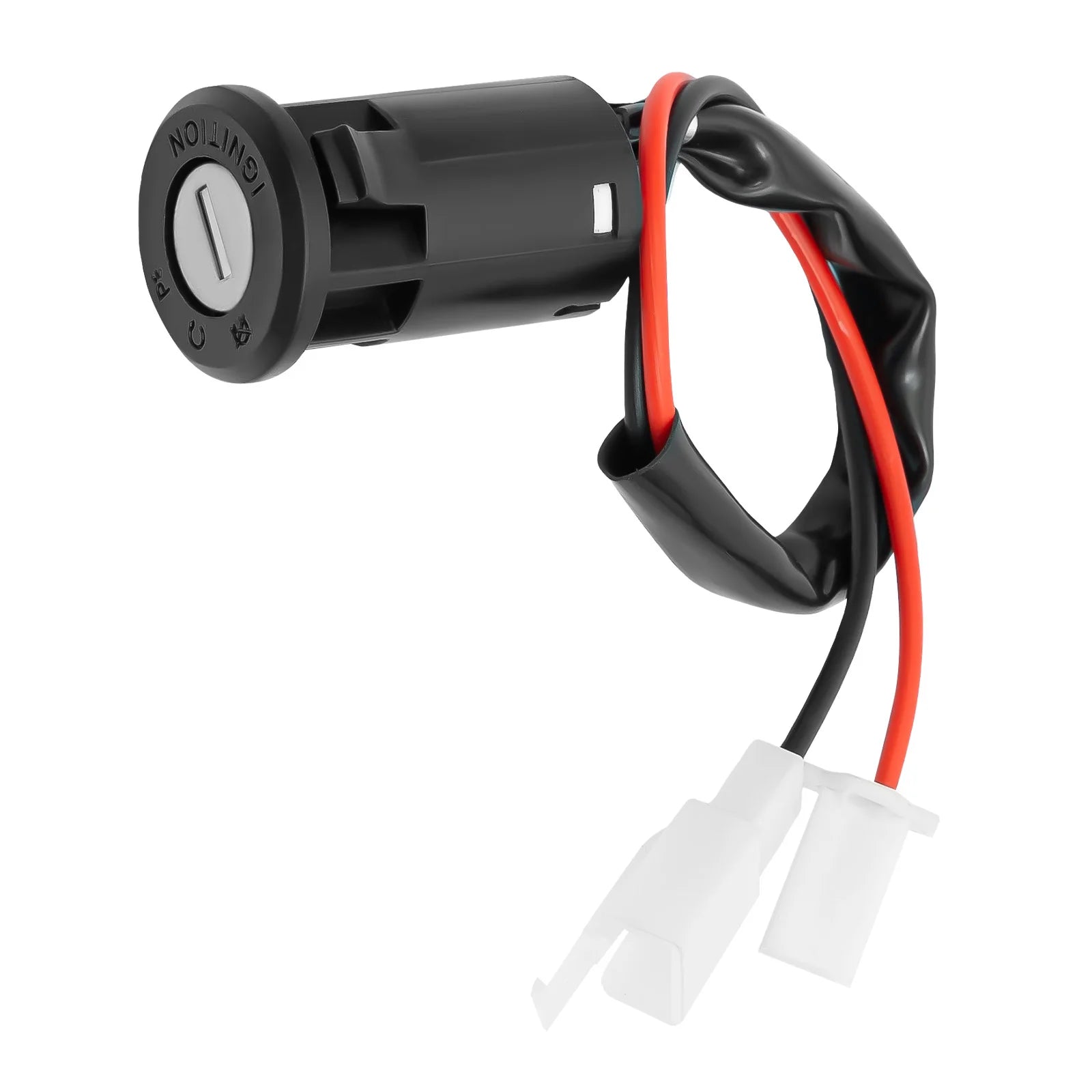

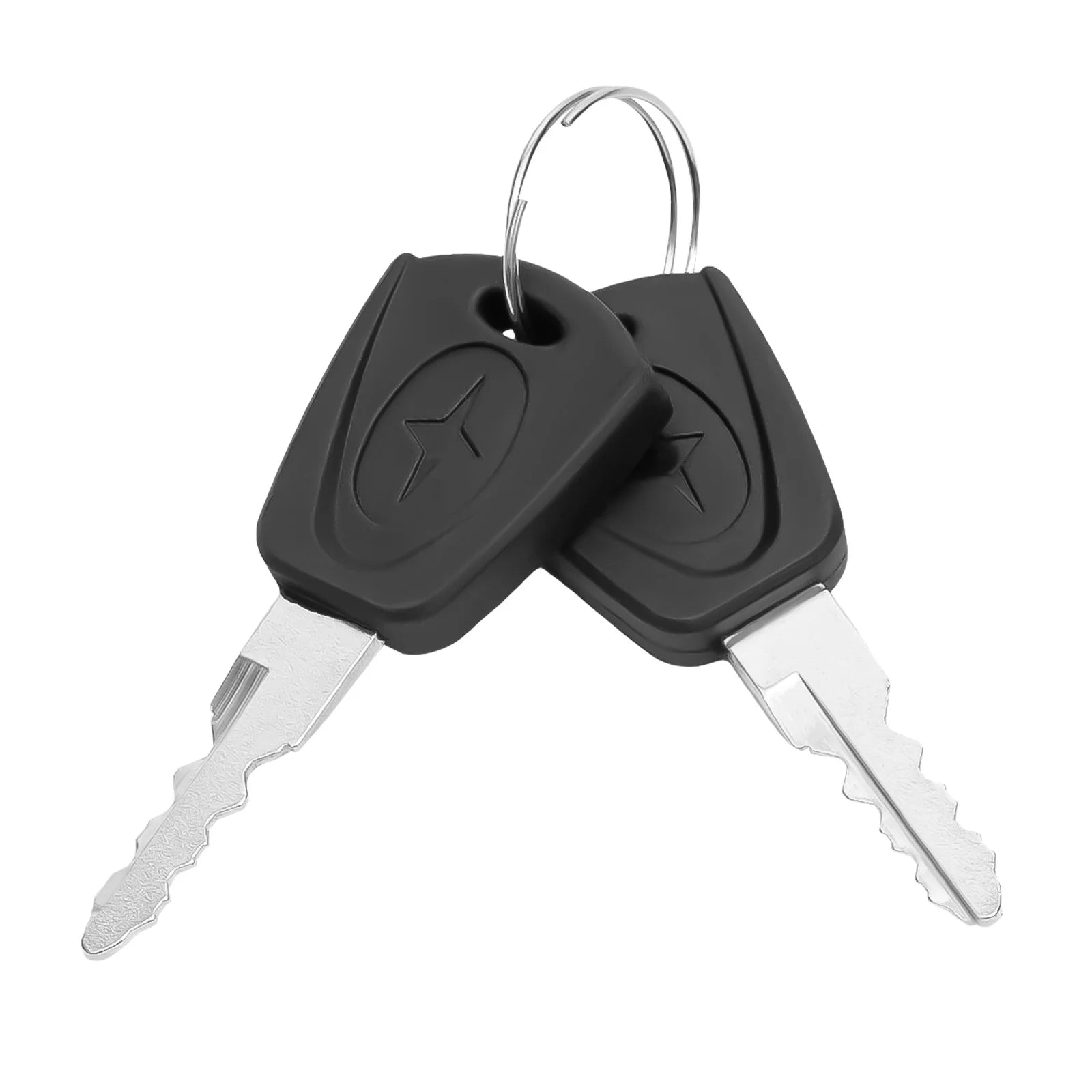

2 x Lock Keys
1 Pair x Handlebars

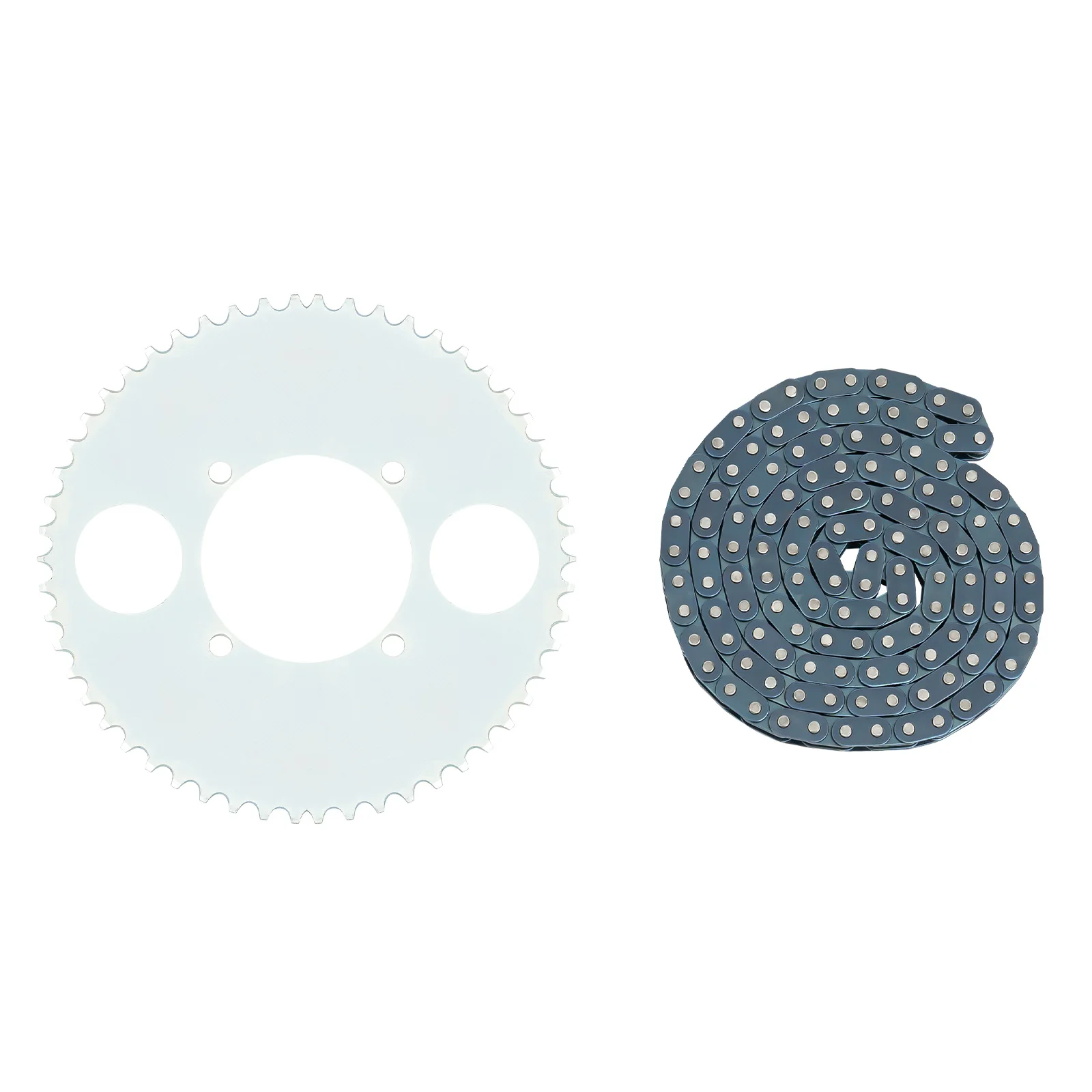

1 Set of T8F Chain and T8F Chain Ring
All Accessories for Installation
